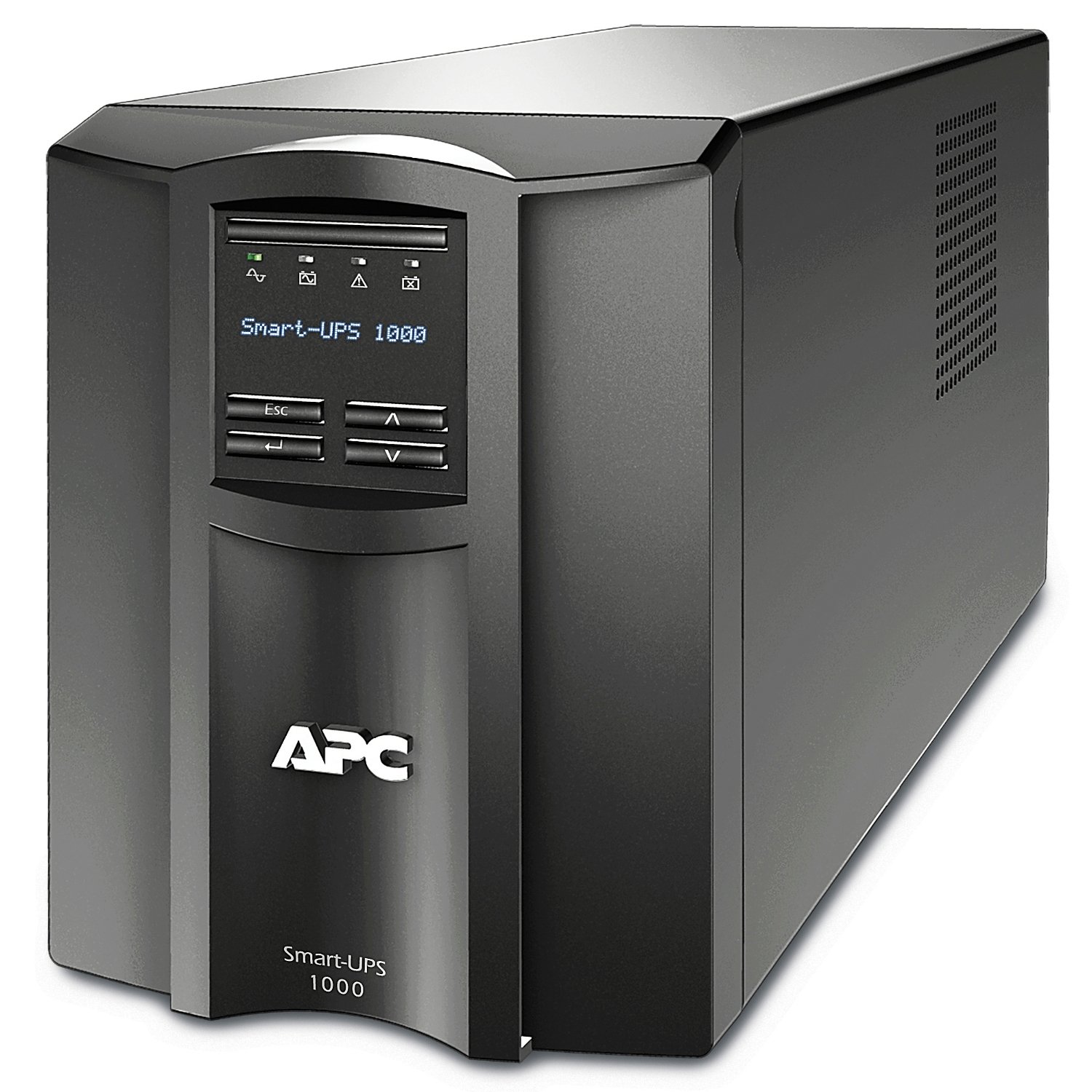

APC 1000VA (SMT1000IC) Smart-UPS

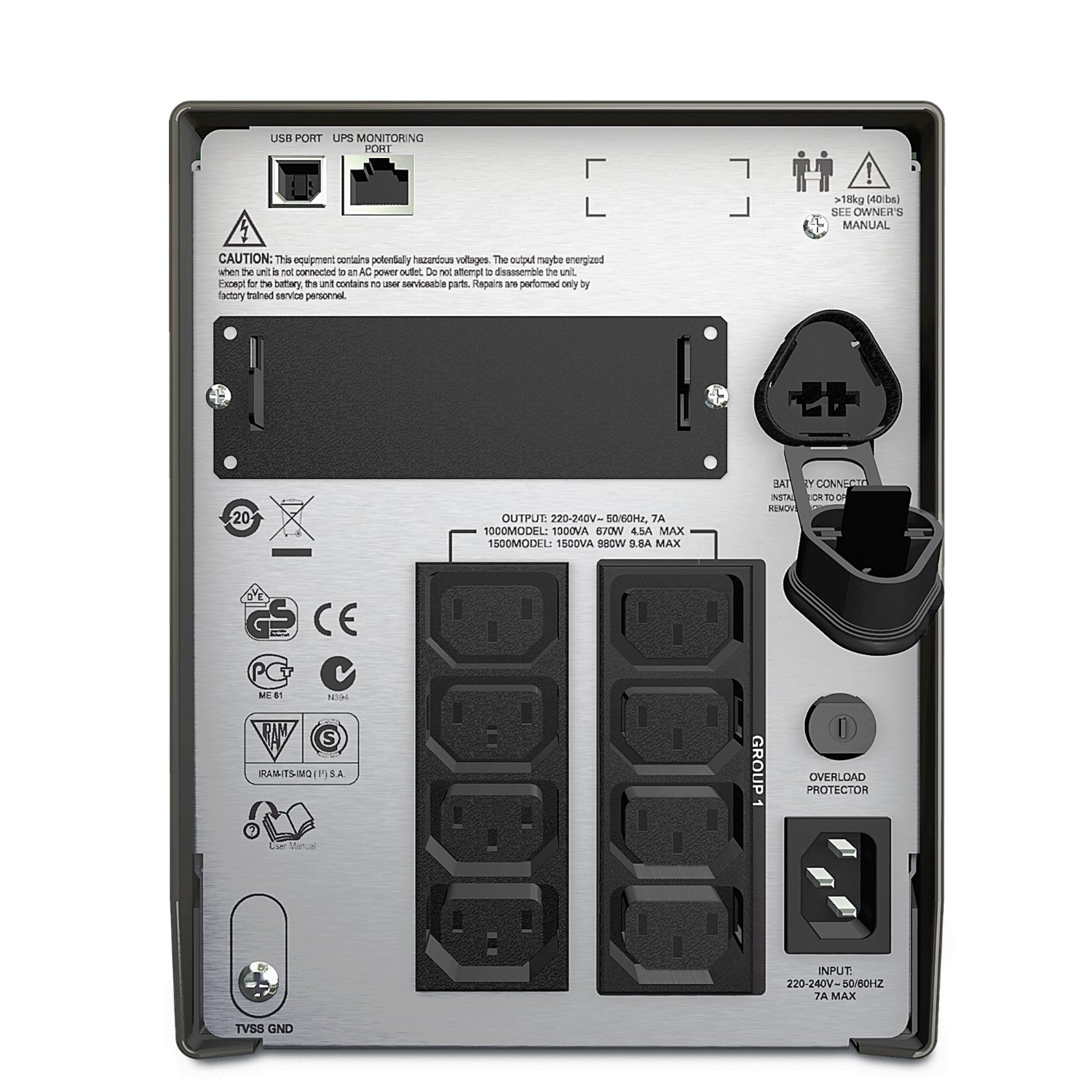

APC 1000VA (SMT1000IC) Smart-UPS: The apc 1000VA (SMT1000IC) Smart-UPS delivers intelligent network power protection in a tower form factor with line-interactive topology. Top Features: 1. Line-Interactive Technology The APC 1000VA (SMT1000IC) incorporates proven line-interactive technology that offers several benefits: Automatic Voltage Regulation (AVR) that corrects voltage fluctuations without using battery power Pure sine wave output with less than 5% harmonic distortion at full load 8 IEC C13 output connections plus 2 IEC jumpers for powering multiple devices Configurable output voltage (220V, 230V, or 240V) to match specific regional requirements Wide input voltage range (151-302V adjustable, 160-286V standard) to operate in varied power environments Additionally, the SMT1000I features a lower acoustic noise level of just 41 dBA and minimal heat dissipation of 100 Btu/h, making it suitable for noise-sensitive office environments. 2. Management & Monitoring Capabilities Multifunction LCD status and control console for easy monitoring SmartSlot expansion slot for optional network management cards Smart UPS signaling via included RS-232 cable USB connectivity with included cable Optional Emergency Power Off (EPO) capability Distinct audible alarms for “on battery,” “low battery,” and “overload” conditions The intuitive interface provides real-time information about UPS status and power conditions, allowing users to make informed decisions about power management during outages or instability. 3. Battery Performance Lead-acid battery with quick 3-hour recharge time 3-5 year typical battery life expectancy User-replaceable battery (RBC6) 88W rated battery charger power Individual battery management that maximizes battery performance and lifespan Ideal Users for the APC SMT1000I Small business operators maintaining legacy systems – The 700W/1000VA capacity combined with line-interactive topology provides adequate protection for existing server deployments that cannot be easily migrated. Home office professionals seeking quiet operation – With its exceptionally low noise level (41 dBA) and minimal heat output (100 Btu/h), the SMT1000I operates quietly in workspace environments. Network administrators in stable power regions – The automatic voltage regulation and reasonable input voltage range (151-302V) make this model appropriate for areas with minor power fluctuations rather than severe instability. Point-of-sale system operators – The eight IEC outlets and sine wave output with less than 5% harmonic distortion ensure clean power for multiple connected retail devices. Users with established infrastructure – For those with existing SMT1000I units who need compatible replacements or additions to maintain consistency across their deployment until the end-of-service date. APC 1000VA (SMT1000IC) Technical Specifications Main Power Specifications Main Input Voltage: 230V (also supports 220V, 240V) Main Output Voltage: 230V (also supports 220V, 240V) Rated Power: 700W / 1000VA Product Type: Uninterruptible Power Supply (UPS) UPS Type: Line interactive Wave Type: Sine wave Input Voltage Limits: 151-302V adjustable (160-286V standard) Network Frequency: 50/60 Hz /- 3 Hz auto-sensing Output Frequency: 47-53 Hz for 50 Hz nominal sync to mains, 57-63 Hz for 60 Hz nominal sync to mains Harmonic Distortion: Less than 5% at full load Connections Input Connection Type: IEC 320 C14 Output Connection Type: 8 IEC 320 C13, 2 IEC Jumpers Communication Port Type: SmartSlot USB Compatible: No (uses provided USB cable for initial setup) Free Slots: 1 Included Equipment USB cable Documentation CD Installation guide Smart UPS signalling RS-232 cable Battery Specifications Battery Type: Lead-acid battery Battery Recharge Time: 3 hours Battery Life: 3-5 years Replacement Battery: RBC6 Battery Charger Power: 88W rated Number of Battery Replacement Quantity: 1 Physical Attributes Color: Black Height: 21.9 cm Width: 17.1 cm Depth: 43.9 cm Net Weight: 18.86 kg Mounting Location: Front Mounting Mode: Not rack-mountable Mounting Preference: No preference Environmental Parameters Acoustic Level: 41 dBA Heat Dissipation: 100 Btu/h Operating Altitude: 0-10,000 ft Storage Altitude: 0-15,240 m Ambient Air Temperature for Operation: 0-40°C Ambient Air Temperature for Storage: -15-45°C Relative Humidity: 0-95% Surge Protection and Filtering Surge Energy Rate: 459J Noise Suppression: Full-time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449 Communications & Management Control Panel: Multifunction LCD status and control console Emergency Power Off: Optional Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm Conformance and Certification Product Certifications: CE, EAC, RCM, VDE Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 Environmental Compliance EU RoHS Directive: Compliant with Exemptions REACh Regulation: REACh Declaration WEEE: Must be disposed on European Union markets following specific waste collection Warranty and Support Warranty: 1 year
