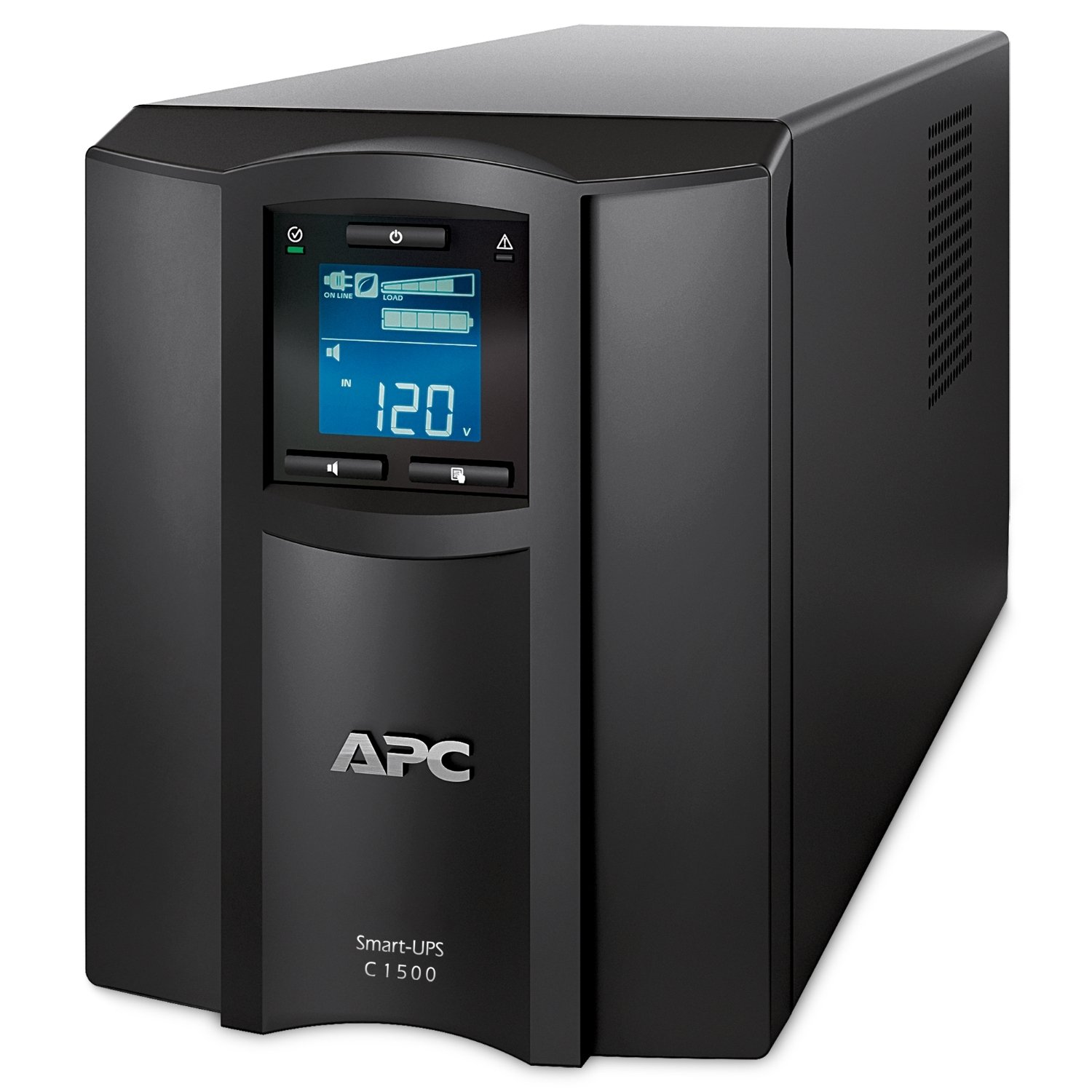

APC 1500VA (SMC1500IC) Smart-UPS

APC 1500VA (SMC1500IC): The APC 1500VA (SMC1500IC) delivers intelligent and efficient network power protection in a tower form factor. This APC UPS provides reliable backup power with pure sine wave output, keeping your critical equipment safe during power disturbances. Advanced Protection Features The SMC1500IC offers comprehensive power management capabilities with its innovative features: Line-interactive topology that automatically regulates voltage fluctuations Pure sine wave output ensuring compatibility with sensitive equipment Fast transfer time of just 6ms typical (10ms maximum) SmartConnect Ethernet port for cloud-based monitoring Multifunction LCD status and control console for easy management 900W of rated power capacity with 1500VA capability Additionally, the UPS includes full-time multi-pole noise filtering with only 0.3% IEEE surge let-through and zero clamping response time, meeting UL 1449 standards. With a substantial surge energy rating of 459 joules, the SMC1500IC effectively shields connected devices from harmful power anomalies. Connectivity & Management The SMC1500IC features multiple connectivity options to ensure seamless integration: SmartConnect Ethernet port for remote power monitoring 8 IEC 320 C13 output connections plus 2 IEC jumpers IEC 320 C14 input connection USB compatibility with included cable Cloud-enabled monitoring capabilities Furthermore, the UPS provides configurable alarms with distinctive notifications for “on battery” and “low battery” states. The intuitive LCD display allows for easy status checks and control adjustments without additional software. Battery Performance & Runtime The SMC1500IC incorporates a reliable lead-acid battery system: 24V battery voltage 3-hour battery recharge time 3-5 year battery life expectancy User-replaceable battery design (RBC6) 73W rated battery charger power Environmental Considerations The SMC1500IC is designed with sustainability in mind: Total lifecycle global warming impact of 1,091 kg CO2 eq. Energy efficient product design Compliant with EU RoHS Directive (with exemptions) REACh Declaration compliance User-replaceable battery and take-back program Part of Schneider Electric’s “Use Better, Use Longer, Use Again” initiative Physical Specifications The tower design offers practical dimensions for placement in various environments: Height: 21.9 cm Width: 17.1 cm Depth: 43.9 cm Net weight: 20.1 kg Black housing color Not rack-mountable The UPS operates effectively across a wide range of conditions: Operating temperature: 0-40°C Storage temperature: -15-45°C Operating altitude: up to 10,000 ft Relative humidity: 0-95% Acoustic level: 45 dBA Heat dissipation: 135 Btu/h Ideal Users for the APC SMC1500IC This UPS solution is particularly well-suited for: Small business server environments – The 900W/1500VA capacity provides adequate backup for essential servers while the pure sine wave output ensures hardware longevity. Network equipment operators – With 8 IEC outlets and a 6ms typical transfer time, the SMC1500IC can protect multiple routers, switches, and hubs during power events. Point-of-sale system managers – The line-interactive topology with automatic voltage regulation maintains consistent power for transaction processing equipment. Home office professionals with sensitive equipment – The low 45dBA noise level and comprehensive surge protection (459J rating) create an ideal solution for quiet work environments with valuable electronics. Users requiring remote monitoring capabilities – The SmartConnect port enables cloud-based power monitoring, perfect for those needing visibility without physical access. APC 1500VA (SMC1500IC) Technical Specifications Main Power Specifications Main Input Voltage: 230V (also supports 220V, 240V) Main Output Voltage: 230V (also supports 220V, 240V) Rated Power: 900W / 1500VA Product Type: Uninterruptible Power Supply (UPS) UPS Type: Line interactive Wave Type: Sine wave Input Voltage Limits: 170-300V adjustable (180-287V standard) Network Frequency: 50/60 Hz /- 3 Hz auto-sensing Output Frequency: 50/60 Hz /- 3 Hz sync to mains Harmonic Distortion: Less than 5% Transfer Time: 6 ms typical, 10 ms maximum Connections Input Connection Type: IEC 320 C14 Output Connection Type: 8 IEC 320 C13, 2 IEC Jumpers Communication Port Type: SmartConnect Ethernet port USB Compatible: Yes Battery Specifications Battery Type: Lead-acid battery Battery Voltage: 24V Battery Recharge Time: 3 hours Battery Life: 3-5 years Replacement Battery: RBC6 Battery Charger Power: 73W rated Number of Battery Replacement Quantity: 1 Physical Attributes Color: Black Height: 21.9 cm Width: 17.1 cm Depth: 43.9 cm Net Weight: 20.1 kg Mounting Location: Front Mounting Mode: Not rack-mountable Environmental Parameters Acoustic Level: 45 dBA Heat Dissipation: 135 Btu/h Operating Altitude: 0-10,000 ft Ambient Air Temperature for Operation: 0-40°C Ambient Air Temperature for Storage: -15-45°C Relative Humidity: 0-95% Surge Protection and Filtering Surge Energy Rate: 459J Noise Suppression: Full-time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449 Conformance and Certification Product Certifications: C-Tick, CE, GOST, VDE, UK PSTI Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
