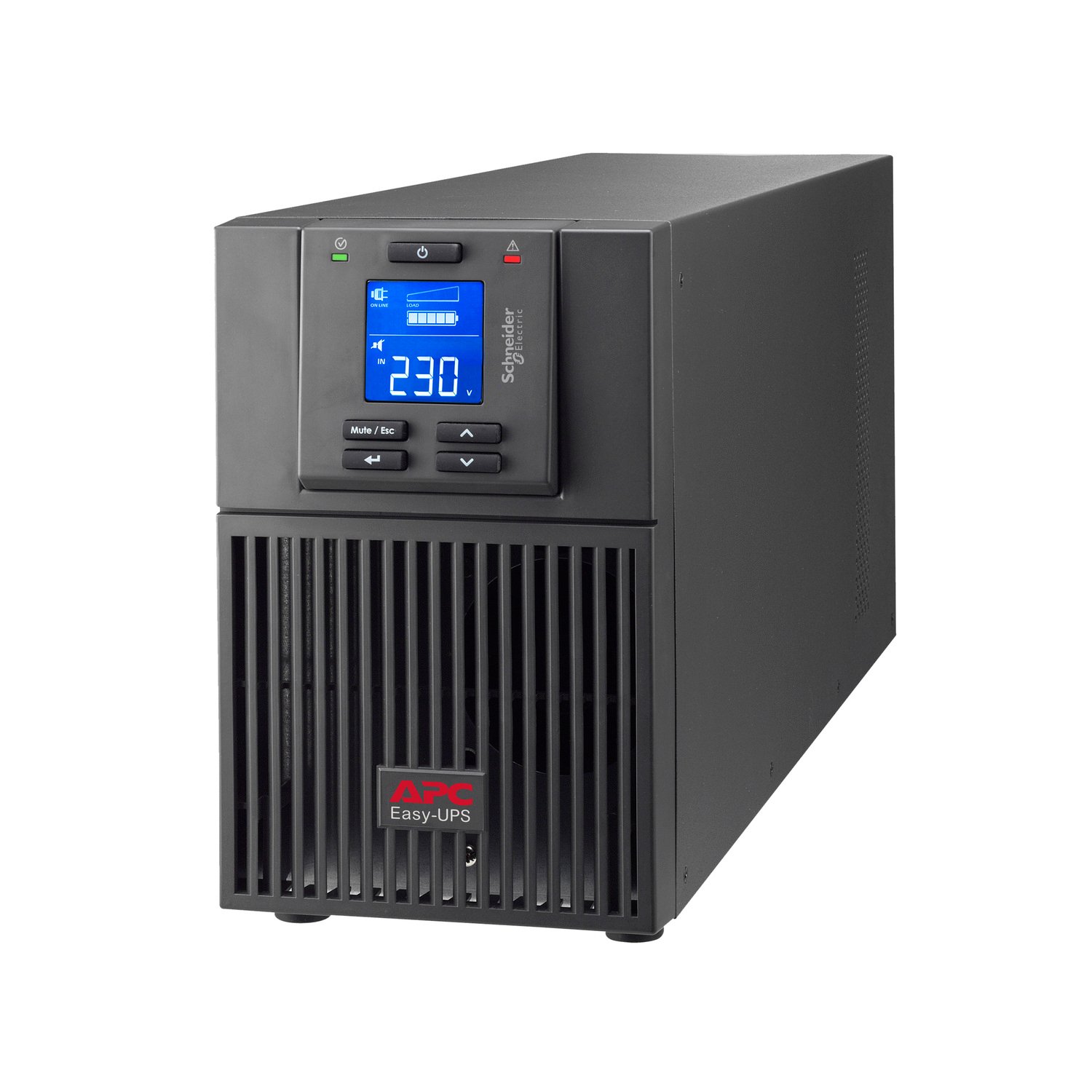

APC 1000VA (SRV1Ki) Easy UPS OnlineSeptember 12, 2024
APC 1000VA (SRV1KI): The APC 1000VA (SRV1Ki) provides high-quality double-conversion online power protection designed for essential equipment in unstable power environments. This reliable apc ups delivers consistent clean power for servers, networking equipment, and other critical devices. Double-Conversion Technology The SRV1KI model utilizes true double-conversion technology that delivers several key advantages: Complete power conditioning with zero transfer time to battery Pure sine wave output for maximum compatibility with sensitive equipment 3% harmonic distortion for clean power output Internal bypass (both automatic and manual) for continued operation during maintenance Crest factor of 3:1 allowing for handling of equipment with high inrush current 88% efficiency at full load, balancing protection with energy conservation Furthermore, the SRV1KI operates effectively across a broad input voltage range (110-285V at half load, 160-280V at full load), making it particularly suitable for regions with unstable power conditions. Connectivity & Management Options The SRV1KI comes equipped with multiple connectivity features for convenient operation: Multifunction LCD status and control console 3 IEC 60320 C13 output connections IEC 60320 C14 input connection USB compatibility with included cable RS-232 configuration port with included cable One free expansion slot for future upgrades Additionally, the UPS provides audible alarms for different conditions including “on battery,” “low battery,” and “overload” situations, allowing for proactive management of power events. Battery Performance The SRV1KI incorporates a reliable power backup system: Lead-acid battery with 24V configuration 4-hour battery recharge time 3-5 year typical battery life Maximum runtime of 4 minutes at full load User-replaceable battery design (APCRBCV203) 30W rated battery charger power Comprehensive Protection Features The SRV1KI provides robust protection against power anomalies: Double-conversion online topology isolates connected equipment from power problems 600J surge energy rating for effective protection against spikes Configurable output voltage (220V, 230V, or 240V) Wide input frequency range (40-70Hz) with auto-sensing capability IP20 protection rating against physical intrusion Physical Specifications The tower design offers a compact footprint for versatile placement: Height: 22.3 cm Width: 14.5 cm Depth: 28.8 cm Net weight: 9.3 kg Black (RAL 7010) housing color Vertical mounting position Not rack-mountable The SRV1KI operates effectively across a wide range of environmental conditions: Operating temperature: 0-40°C Storage temperature: -20-50°C Operating altitude: up to 3,000m Storage altitude: up to 15,000m Relative humidity: 0-95% non-condensing Acoustic level: 50 dBA Heat dissipation: 372 Btu/h Ideal Users for the APC SRV1KI This UPS solution is especially suitable for: Small business operators in areas with unstable power – The double-conversion online technology with wide input voltage tolerance (110-285V) makes the SRV1KI perfect for regions with frequent power fluctuations. Healthcare facilities with essential medical equipment – The pure sine wave output with just 3% harmonic distortion provides the clean power necessary for sensitive diagnostic equipment. IT professionals managing critical network infrastructure – With a crest factor of 3:1 and automatic bypass functionality, the SRV1KI can handle equipment with high inrush current while ensuring continuous operation. Retail businesses with point-of-sale systems – The compact form factor (22.3×14.5×28.8 cm) and included power cables allow for easy integration into retail environments where space is limited. Security system operators – The multifunction LCD status console provides clear visibility into UPS status, while configurable alarms ensure prompt notification of power events. APC 1000VA (SRV1Ki) Technical Specifications Main Power Specifications Main Input Voltage: 230V (also supports 220V, 240V) Main Output Voltage: 230V (also supports 220V, 240V) Rated Power: 800W / 1000VA Product Type: Uninterruptible Power Supply (UPS) UPS Type: Double conversion online Wave Type: Sine wave Input Voltage Limits: 110-285V at half load, 160-280V at full load Network Frequency: 40-70 Hz auto-sensing Output Frequency: 50/60 Hz /- 3 Hz sync to mains Harmonic Distortion: 3% Efficiency: 88% (full load) Crest Factor: 3:1 Bypass Type: Internal bypass (automatic and manual) Connections Input Connection Type: IEC 60320 C14 Output Connection Type: 3 IEC 60320 C13 Cable Length: 1.50 m USB Compatible: Yes Included Equipment 1 IEC 60320 C13 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable User manual Battery Specifications Battery Type: Lead-acid battery Battery Voltage: 24V Battery Recharge Time: 4 hours Battery Life: 3-5 years Replacement Battery: APCRBCV203 Battery Charger Power: 30W rated Number of Battery Filled Slots: 1 Number of Battery Free Slots: 0 Maximum Runtime: 4 minutes at full load Physical Attributes Color: Black (RAL 7010) Height: 22.3 cm Width: 14.5 cm Depth: 28.8 cm Net Weight: 9.3 kg Mounting Position: Vertical Mounting Support: Floor Mounting Mode: Not rack-mountable Environmental Parameters Acoustic Level: 50 dBA Heat Dissipation: 372 Btu/h Operating Altitude: 0-3,000 m Storage Altitude: 0-15,000 m Ambient Air Temperature for Operation: 0-40°C Ambient Air Temperature for Storage: -20-50°C Relative Humidity: 0-95% non-condensing IP Degree of Protection: IP20 Surge Protection Surge Energy Rate: 600J Conformance and Certification Product Certifications: CE, UKCA, EAC, TISI Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 Environmental Compliance EU RoHS Directive: Compliant REACh Regulation: REACh Declaration China RoHS Regulation: China RoHS declaration Warranty and Support Warranty: 1 year
