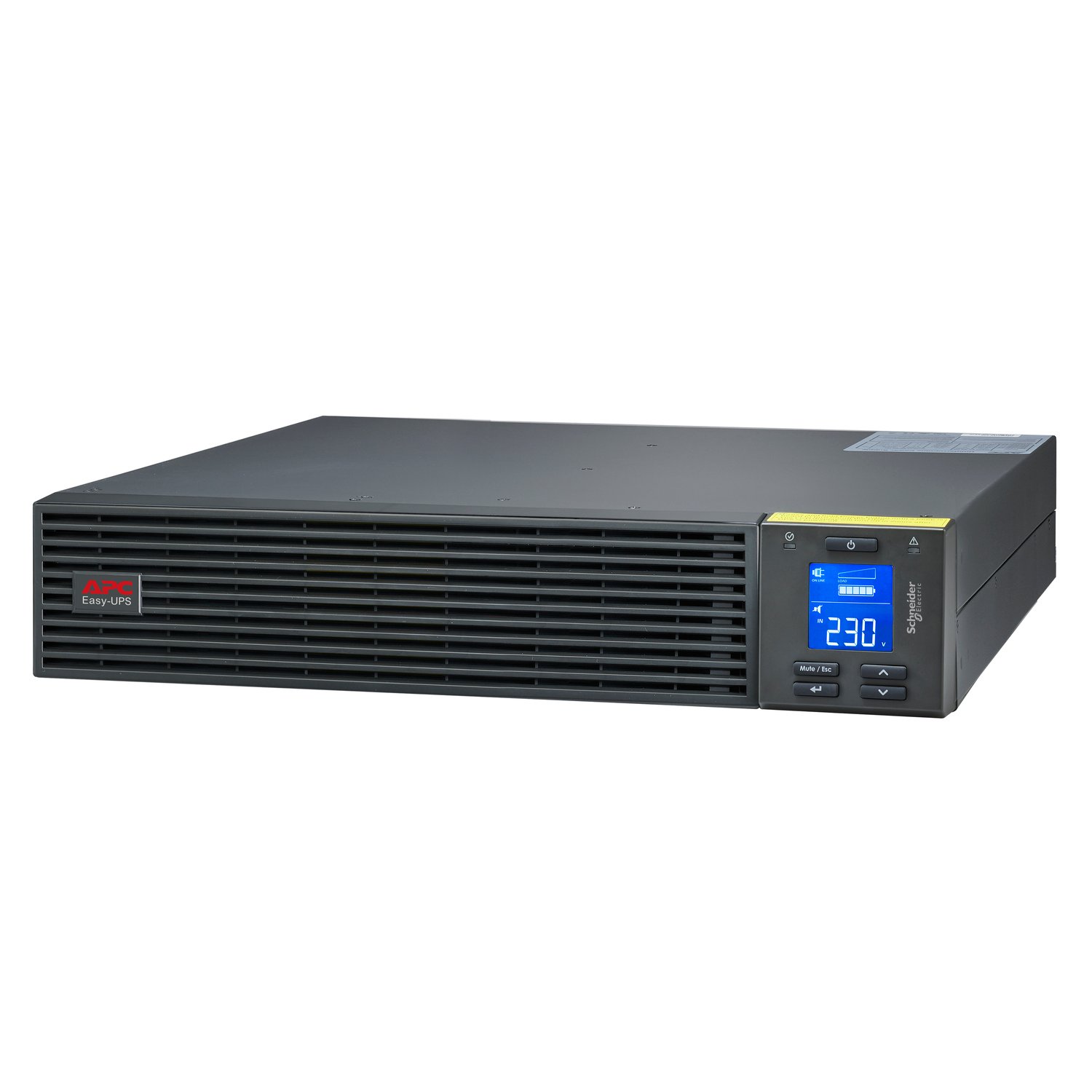

APC 2000VA (SRV2KRIRK) Easy UPS On-Line Rackmount

APC 2000VA Easy UPS On-Line, Rackmount (SRV2KRIRK) The APC 2000VA (SRV2KRIRK) delivers essential power protection in a space-efficient 2U rackmount design. This double-conversion online APC UPS provides clean, regulated power even during unstable power conditions. Rackmount Design for Efficient Deployment: The SRV2KRIRK features: Compact 2U form factor for standard 19″ racks Complete mounting solution with included rack rails and brackets Front-facing LCD panel for easy status monitoring Horizontal mounting orientation for optimal airflow Black (RAL 7010) professional finish to blend with rack equipment With dimensions of 8.6 cm (H) × 43.7 cm (W) × 46.2 cm (D), the SRV2KRIRK maximizes rack space efficiency while providing substantial power protection capacity. Advanced Power Protection Technology The APC 2000VA (SRV2KRIRK) employs true double-conversion online technology that completely isolates connected equipment from power disturbances: Pure sine wave output ensures compatibility with sensitive equipment 3% harmonic distortion for clean power delivery Wide input voltage range (160-280V at full load, 110-285V at half load) Automatic voltage regulation without battery power usage Internal bypass (both automatic and manual) for continuous operation 88% efficiency at full load balances protection with energy consumption Additionally, it offers configurable output voltage (220V, 230V, or 240V) to match specific equipment requirements and a crest factor of 3:1 to handle modern IT loads. Comprehensive Connectivity The SRV2KRIRK comes equipped with: 4 IEC 60320 C13 outlets with battery backup IEC 60320 C14 input connection USB and RS-232 ports for system monitoring One intelligent card slot for optional network management Multi-function LCD status and control console The package includes both a Schuko power cable and C14 power cable (1.5m each), along with USB and RS-232 configuration cables for immediate setup. Reliable Battery System The SRV2KRIRK features: Lead-acid battery with 48V system 4-hour typical recharge time 3-5 year battery life expectancy User-replaceable battery design (APCRBCV201) 70W rated battery charger power With a maximum runtime of 4 minutes at full load, the system provides sufficient time to safely shut down equipment or transition to alternative power sources. Ideal For: Data Center Managers – The rackmount form factor and rail kit make this UPS perfect for integration into existing rack infrastructure, maximizing valuable data center floor space. Network Administrators – With the intelligent card slot and multiple communication interfaces, the SRV2KRIRK offers robust monitoring capabilities essential for maintaining network uptime. Small Server Room Operators – The 2000VA/1600W capacity provides adequate power for multiple servers and network equipment in a compact 2U profile. Retail IT Infrastructures – The wide operating temperature range (0-40°C) and high humidity tolerance (0-95% non-condensing) make this UPS suitable for varied retail environments with limited climate control. APC 2000VA (SRV2KRIRK) Full Technical Specifications Output Specifications Maximum Configurable Power: 1600W / 2000VA Nominal Output Voltage: 230V (configurable for 220V or 240V) Output Frequency: 50/60Hz /- 3 Hz (sync to mains) Waveform Type: Sine wave Harmonic Distortion: 3% Load Crest Factor: 3:1 Topology: Double Conversion Online Efficiency at Full Load: 88% Output Connections: 4 IEC 60320 C13 Bypass Type: Internal bypass (automatic and manual) Input Specifications Nominal Input Voltage: 230V Input Frequency: 40-70 Hz auto sensing Input Voltage Range: 160-280V (full load), 110-285V (half load) Input Connection Type: IEC 60320 C14 Cord Length: 1.50m Other Input Voltages: 220V, 240V Battery & Runtime Battery Type: Lead-acid battery Battery Voltage: 48V Battery Life: 3-5 year(s) Replacement Battery: APCRBCV201 Battery Recharge Time: 4 hours Battery Charger Power: 70W rated Max Runtime: 4 minutes at full load Physical Specifications Form Factor: Rackmount 2U Dimensions (H × W × D): 8.6 cm × 43.7 cm × 46.2 cm Net Weight: 18.2 kg Color: Black (RAL 7010) Mounting Location: Front Mounting Mode: Rack-mounted Mounting Position: Horizontal Communications & Management Interface Ports: USB, DB-9 RS-232 Free Slots: 1 (for intelligent cards) Control Panel: Multifunction LCD status and control console Audible Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm Environmental Specifications Operating Temperature: 0-40°C Operating Relative Humidity: 0-95% non-condensing Operating Altitude: 0-3000m Storage Temperature: -20-50°C Storage Altitude: 0-15000m Acoustic Level: 50 dBA Heat Dissipation: 745 Btu/h IP Rating: IP20 Surge Protection Surge Energy Rating: 600 Joules Compliance Product Certifications: CE, EAC, TISI Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 Environmental Compliance: EU RoHS Directive Compliant, REACh Declaration, China RoHS declaration Warranty: 2 years repair or replace Included Equipment 1 IEC 60320 C13 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable 1 rack mounting brackets 1 rack mounting support rails User manual
